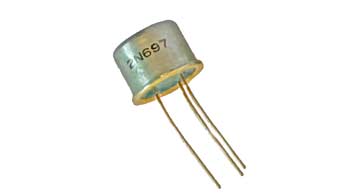

2N697 Transistor Data
Key transistor data for the 2N697 medium powered NPN switching transistor including key electrical parameters, pinout, package type and many other key transistor datasheet details.
The 2N697 is described as ab NPN medium power silicon switching transistor.
Despite the fact that it has been around for very many years, it is still available, although at a cost, through many mainline distributors.
Key datasheet details and performance parameters for the 2N697 transistor.
| Transistor datasheet parameters & data |
|
|---|---|
| Parameters | Details |
| Transistor type | NPN silicon |
| Package type | T05 |
| VCBO max (V) | 60 |
| VCEO max (V) | 40 |
| VEBOmax (V) | 5 |
| IC max (mA) | 500 |
| TJ Max °C | 175 |
| PTOT mW | 600 |
| fT min (MHz) | 50 |
| COB | 35 |
| hfe | 40 - 120) |
| IC for hfe | 150 |
| Similar / equivalents | BFY50, 2N2297 |
Outline:
Pinout:
Explanation of transistor parameters
| Parameter | Explanation |
|---|---|
| VCBO Max | Maximum collector-base voltage with emitter open circuit . |
| VCEO Max | Maximum collector-emitter voltage with base open circuit. |
| VEBO Max | Maximum emitter-base voltage with collector open circuit. |
| VCEsat (included where applicable) | The voltage drop across the collector-emitter when the transistor is fully saturated (acting as a closed switch). |
| IC Max | Maximum collector current. |
| Parameter | Explanation |
|---|---|
| TJ | Maximum junction temperature. |
| PTOT Max | Maximum device dissipation normally in free air at 25°C unless other conditions indicated. |
| fT Min | Minimum cutoff frequency at which the current gain in a common emitter circuit falls to unity. |
| COB Max | Maximum collector capacitane, normally measured with emitter open circuit. |
| hFE | DC current gain for HFE at IC. [Note hfe is the small signal gain and although this may be slightly different, the transistor current gain will vary considerably from ne transistor to the next of the same type.] |
| PTOT Max | Maximum device dissipation normally in free air at 25°C unless other conditions indicated. |
These are the main transistor parameters that have been included in our list. There are others, but these help quantify the main elements of the performance of the transistor.
Please note, that the data given is the best estimate we can give within a tabulated summary of this nature. Parameters also vary between manufacturers. Electronics Notes cannot accept any responsibility for errors, inaccuracies, etc, although we do endevaour to ensure the data is as accurate as possible.
Notes and supplementary information
• Availability & sources
The 2N697 is available from a number of stockists and electronic component distributors.
• Supply status
Although the 2N697 is an old part, it is still available through a number of distributors including some of the mainstay ones. However, for the performance costs are high and newer alternatives would be much cheaper and offer better performance.
There are many manufacturers for this transistor including MicroChip.
