7400 Logic Series Part Numbering Infographic

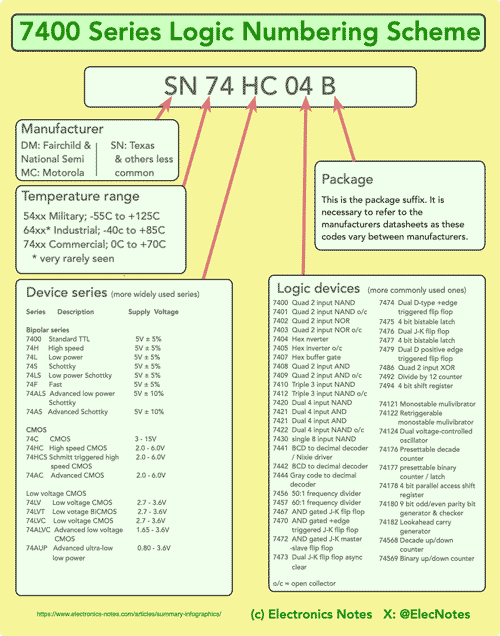

My infographic shows how the 7400 Series logic chip part numbers reveal much about what they are and their performance.

For many years the 7400 series logic chips have been in use and there ae several sub-families within the overall technology.

Understanding the part numbering can give a real insight into the performance and capabilities of the specific chip: manufacturer, function, subfamily and the package.

In this way it is possible to look at a quick glance at the part number will reveal a lot about the actual chip.





Not all browsers show PDFs in the same way, so you can download the file.



Please note that this infographic is copyright and should not be used without permission. It's taken me a lot of time to put it together - Thank you.

Ian Poole   Written by Ian Poole .
  Experienced electronics engineer and author.
