Logic Truth Tables & Gates Infographic

Truth tables form the basis of the design of all logic circuits and as such are an important foundation for any logic / digital design

There are several different logic building blocks, each having its own function.

Understanding the different functions: buffer, inverter (NOT gate), AND, NAND, OR and NOR as well as exclusive OR and exclusive NOR provide the fundamental functions in any logic design.,?p.

Knowing the different symbols, their function and Boolean operations ir any logic design is to be undertaken.

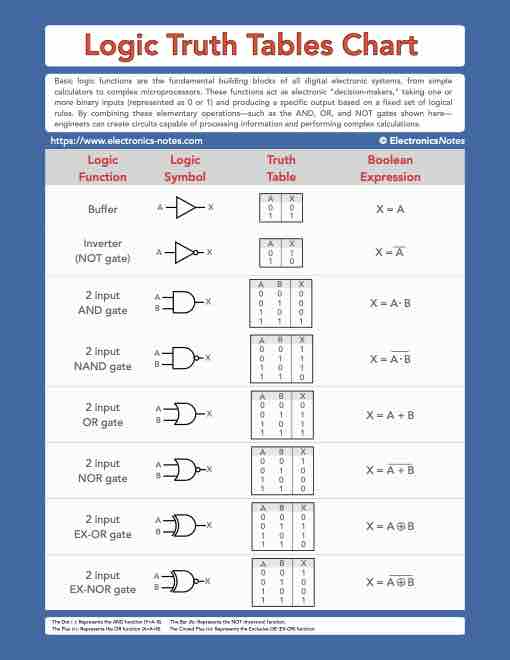

These are all summarised in my logic infographic given below.
